Abarth Grande Punto 2005 Fuse Box/Block Circuit Breaker Diagram

Abarth Grande Punto 2005 Fuse Box/Block Circuit Breaker Diagram



USERSFUSEAMPERE (A)
Free01-
Free02-
Free03-
Power For Drivers Seat Lumbar Adjustment Motor0410A
Power For Boot Current Outlet0515A
Free06-
Free07-
Power For Drivers Seat Warning Unit0810A
Power For passengers Seat Warning Unit0910A
Power + Battery Power Window Motor On Right Rear Door1020A
Power + Battery Power Window Motor On Left Rear Door1120A
Free12-
Free13-
Free14-
Power + Battery Tyre Pressure Monitoring System Control Unit1510A
Power + Battery Hi-Fi system Subwoofer1620A
Power + Battery Power Sunroof System1720A

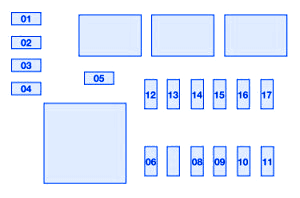

Abarth Grande Punto 2005 Fuse Panel/Board – Fuse Symbol Map
