Acura Legend Coupe 1999 Dashboard Fuse Box/Block Circuit Breaker Diagram

Acura Legend Coupe 1999 Dashboard Fuse Box/Block Circuit Breaker Diagram

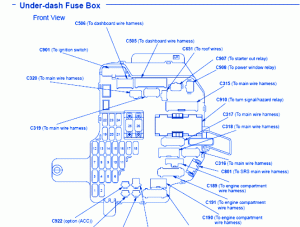

SymbolDescription
C901Ignition Switch
C506Dashboard Wire Harness
C505Dashboard Wire Harness
C320Main Wire Harness
C319Main Wire Harness
C651Roof Wires
C907Starter Cut Relay
C908Power Window Relay
C315Main Wire Harness
C910Turn Signal/Hazzard Relay
C317Main Wire Harness
C318Main Wire Harness
C316Main Wire Harness
C801SRS Main Wire Harness
C189Engine Compartment Wire Harness
C191Engine Compartment Wire Harness
C190Engine Compartment Wire harness
C922Option ACC

Acura Legend Coupe 1999 Dashboard Fuse Panel/Board – Fuse Symbol Map
