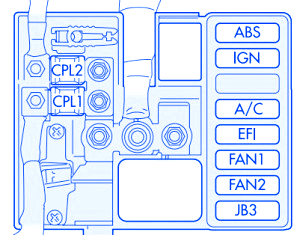

Alfa Romeo 147 FL 2007 Primary Fuse Box/Block Circuit Breaker Diagram

Alfa Romeo 147 FL 2007 Primary Fuse Box/Block Circuit Breaker Diagram



SERVICEFIGUREFUSEAMPERE(A)
Salespeed transmission PumpBattery (Positive Pole)-30A
Ignition SwitchBattery (Positive Pole)IGN (MAXI-Fuse)30A
Dashboard Control UnitBattery (Positive Pole)CPL 1 (MAXI-Fuse)70A
Climate Control FanBattery (Positive Pole)A/C (MAXI-Fuse)40A
Radiator FanBattery (Positive Pole)FAN 1 (MAXI-Fuse)40A
Radiator FanBattery (Positive Pole)FAN 2 (MAXI-Fuse)40A
HornBattery (Positive Pole)F315A
Electronic InjectionBattery (Positive Pole)EFI (MAXI-Fuse)30A
Engine Compartment Fuse Carrier MoculeBattery (Positive Pole)JB3 (MAXI-Fuse)50A

Alfa Romeo 147 FL 2007 Primary Fuse Panel/Board – Fuse Symbol Map
