Alfa Romeo 156 FL 2006 Engine Fuse Box / Block Circuit Breaker Diagram
| RELAY | DESCRIPTION |
|---|---|
| A | Engine radiator Cooling fan 2nd speed relay (T.SPARK versions) |
| B | Engine radiator cooling fan 1st speed relay |
| C | Fuel pump relay |
| D | Electronic injection relay |
| E | Climate control Compressor relay |
| F | Timming variator relay (1.6 T.SPARK only) or Engine radiator fan 2nd speed relay (Only 2.5 V6 24V, JTD and JTD 16V Multijet Versions) |
| G | Fuel oil heater relay (only diesel versions) |

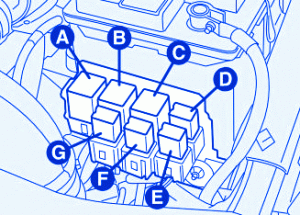

Alfa Romeo 156 FL 2006 Engine Fuse Panel / Board – Fuse Symbol Map
