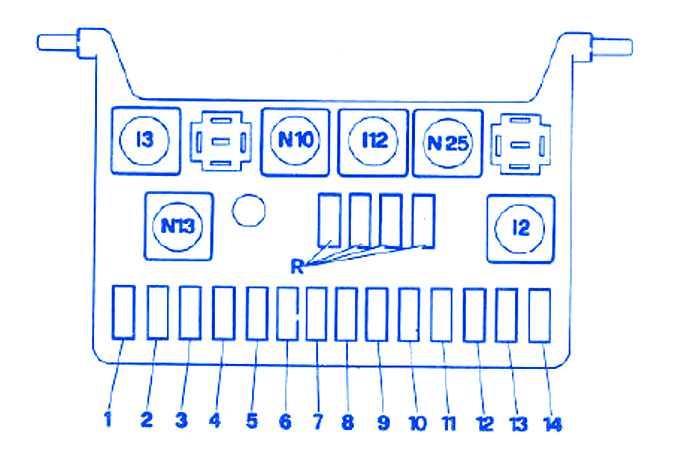

Alfa Romeo Volante 1996 Primary Fuse Box/Block Circuit Breaker Diagram

Alfa Romeo Volante 1996 Primary Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
RSpare Fuse
I2Rear Heated Window Remote Control Switch
I3Acoustic Warning Remote Control Switch
I12Power Windows Remote Control Switch
N10Light Timer
N13Alternator, Direction Indicator Lights and hazard Lights
N25Electronic device For Rear Fog Lamp

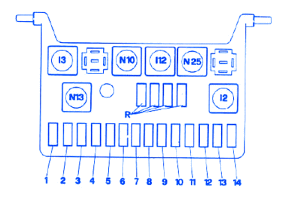

Alfa Romeo Volante 1996 Primary Fuse Panel/Board – Fuse Symbol Map
