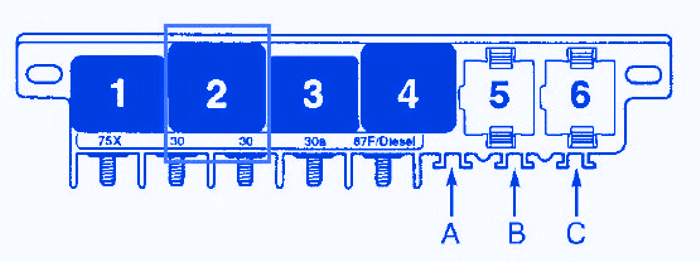

Audi Q7 Mini 2008 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Dual Horn Relay |
| 2 | Load Reduction Relay |
| 3 | 4-Low Range Hydraulic Pump Relay |
| 4 | Fuel Pump Relay |
| 5 | Wiper/Washer Intermittent Relay |
| 6 | Wiper/Washer Intermittent Relay |
| A. | Steering Column Adjustment Fuse |
| B. | Rear Shade Fuse |
| C. | Not Used |
Audi Q7 Mini 2008 Fuse Panel/Board – Fuse Symbol Map
