BMW 318i 1991 Fuse Box/Block Circuit Breaker Diagram

BMW 318i 1991 Fuse Box/Block Circuit Breaker Diagram



No.AmpereDescription
17.5ALeft High beam Headlight (Relay K3)
27.5ARight High Beam Headlight (Relay K1)
315AAuxiliary Fan 91C (Relay K1)
415AFlashing Turn Indicators
530AWipe-Wash, Headlight Cleaning and Intensive Cleaning Systems (Relay K10)
67.5ABrake Lights (15A if Addtional Brake Lights Are Fitted), Automatic Cruise Control, Map Reading Lights
715AHorn (Relay K2)
830AHeated Rear Window
915ASelector Lever Position Indicator For Automatic transmission
107.5AInstruments, on-Board Computer, Reversing Lights, service Indicator
117.5AFuel pump, Fuel Supply Pump
127.5ARadio, Check Control and Instruments
137.5ALeft low Beam Headlight (Relay K4)
147.5ARight Low Beam Headlight (K4)
157.5ARear Fog Lights (Relay K4), Switching off When High Headlight Beam Are Selected (Relay K9)
1615ASeat Heating (Relay K5)
1730ASliding Roof (Relay K5)
1830AAuxiliary Fan, 99C (Relay K6)
197.5AMirror Control, Mirror Heating (Relay K7)
2030AHeater Blower, Air Conditioning (Relay K7)
217.5AInterior, Glovebox and Luggage Compartment Lights, Torch, Clock, Radio memory, On-Board Computer
227.5ALeft Side, Rear and Parking Lights
237.5ARight side, Rear and Parking Lights, License Plate Lights, Instrument Lighting
2415AHazard Warning Flasher
2530ANot Used
2615ATouring Rear Window, Wipe-Wash System
2730ACentral Locking System, Door Lock Heating, On-Board Computer Horn, Sound System
2830ACigarette lighter, Motor-Driven Radio Aerial, Independent Fuel-Burning Heater
297.5ALeft Fog Light (Relay K8)

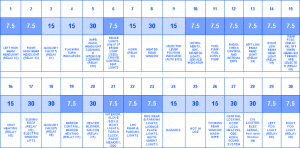

BMW 318i 1991 Fuse Panel/Board – Fuse Symbol Map
