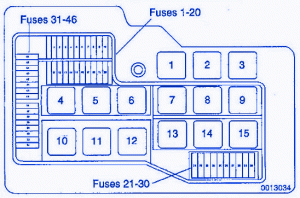

BMW 318i 1996 Distribution Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1. | Fuel Pump Relay |
| 2. | System (Main) Relay |
| 3. | Oxygen Sensor Heater Relay |
| 4. | Horn Relay |
| 5. | Taillight/Foglight Relay |
| 6. | Low Beam Relay |
| 7. | High Beam Relay |
| 8. | Emergency Flasher Relay |
| 9. | HeaterA/C Blower Relay |
| 10. | Rear Defogger Relay |
| 11. | ABS System Relay |
| 12. | ABS Pump Relay |
| 13. | High Speed Radiator Fan Relay |
| 14. | A/C Compressor Relay |
| 15. | Low Speed Radiator Fan Relay |
BMW 318i 1996 Distribution Fuse Panel/Board – Fuse Symbol Map
