BMW 733i 1982 Power Distribution Fuse Box/Block Circuit Breaker Diagram

BMW 733i 1982 Power Distribution Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsColorCircuits Protected
116ARDFuel Delivery/Evaporative Control Idle Speed Control
28AWTHeadlights (RH Low Beam)
38AWTHeadlights (LH Low Beam)
425ABUCigar Lighter
58AWTActive Check Control, Auto Charging Flashlight, Central Locking, Gauges, Glove Box Light, Heated Door Lock, Ignition Key Warning/Seatbelt Warning, Interior Lights, Lights Turn/Hazard Warning, On-Board Computer, Radio/Power Antenna, Trunk Light
68AWTActive Check Control, Backup Lights/Transmission Range Lights, Brake Lining Warning, Cruise Control, Dash Lights, Gauges, Idle Speed Control, Interior Lights, Power Mirrors, Power Windows, Seatbelt Warning, Speedometer, Warning Indicators
78AWTHeadlights (LH, RH, High Beams)
88AWTHeadlights (LH, RH, High Beams)
98AWTActive Check Control, Dash Lights, Front Park/Tail/Underhood Light, Rear Marker/LicenseLight
108AWTActive Check Control, Front Park/Tail Lights
1116ARDActive Check Control, Horn, Turn/Hazard Warning Lights, Wiper/Washer
128AWTActive Check Control, Radio/Power Antenna, Stoplights/Cruise Control, Warning Indicators
1325ABURear Defogger/Sunroof
1425ABUAutomatic Heater-Air Conditioner, Auxiliary Fan, Vacuum Pump
158AWTFoglights (RH)
168AWTFoglights (LH)
1725ABUAuxiliary Fan
Power Window Circuit Breaker25A-Power Windows
In-Line Radio1A-Radio
Auxiliary Fan25A-Auxiliary Fan

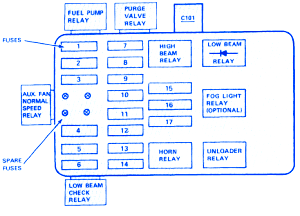

BMW 733i 1982 Power Distribution Fuse Panel/Board – Fuse Symbol Map
