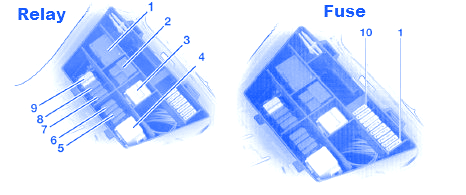

BMW R1150GS 2000 Fuse Box/Block Circuit Breaker Diagram

BMW R1150GS 2000 Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAP
1Flasher Unit
2Dial Needle Damping
3Coding Plug Motronic
4Starter Relay
5Load Relief Relay
6Horn Relay
7Full Pump Relay
8Motronic Relay
9ABS Warning Relay

FUSE SYMBOLAMPFUSE MAP
14AIstrument Cluster, Dial Needle Damping, Brake Light
24ATail Light, Side Light
315ADriver Information Display, Socket
47.5AHorn
510AMotronic, Diagnostic Connector
610AFuel Pump
74AHeated Handles
8-Not Used
9-Not Used
10-Not Used

BMW R1150GS 2000 Fuse Panel/Board – Fuse Symbol Map
