Buick Delta 88 1994 Fuse Box/Block Circuit Breaker Diagram

Buick Delta 88 1994 Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
SBM Fuse10A
PDM Fuse10A
A/C Fuse10A
IGN SEN Fuse10A
ELC Fuse10A
HVAC Fuse10A
CR CONT Fuse10A
HUD Fuse10A
CSTR/SBM Fuse10A
LP PK L Fuse10A
LP PK R Fuse10A
RUN Fuse10A
WSW Fuse30A
RFARSEN Fuse10A
B/U LP Fuse10A
RELAY
PERM LIGHTING Relay
ACCY Relay
IGN 3 Relay

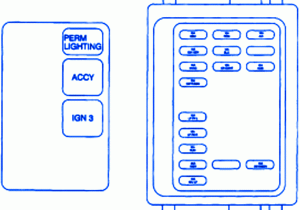

Buick Delta 88 1994 Fuse Panel/Board – Fuse Symbol Map
