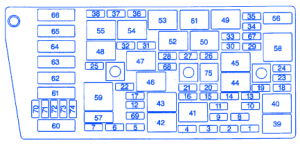

Buick Lesabre 2002 Rear Fuse Box/Block Circuit Breaker Diagram

Buick Lesabre 2002 Rear Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapAmps
1F/PMP Fuse20A
2HVAC BLO Fuse30A
3MEM Fuse10A
4ALDL Fuse10A
5RR DEFOG Fuse10A
6CD Fuse10A
7DRV MDL Fuse10A
8SIR Fuse15A
9Not Used-
10LP PK R Fuse10A
11VENT SOL Fuse10A
12IGN1 Fuse10A
13LP PK L Fuse10A
14DIMR Fuse10A
15Not Used-
16HTDST LF Fuse10A
17Not Used-
18RRDR MDL Fuse10A
19STOP LP Fuse15A
20NSBU Fuse10A
21AUDIO Fuse10A
22RAP Fuse10A
23Not Used-
24Not Used-
25PASS MDL Fuse10A
26BODY Fuse15A
27INT LP Fuse10A
28Not Used-
29IGN SW Fuse15A
30IP Fuse10A
31HTDST RF Fuse10A
32Not Used-
33HVAC Fuse10A
34IGN 3 Fuse10A
35ABS Fuse10A
36TSIG/HAZ Fuse15A
37HVAC BATT Fuse10A
38DIM Fuse10A
Relay Map
39F/PMP Relay-
40PRK LP Relay-
41IGN 1 Relay-
42Not Used-
43Not Used-
44PARK Relay-
45REVERSE Relay-
46RAP Relay-
47F/TNKDRLOCK Relay-
48Not Used-

Buick Lesabre 2002 Rear Fuse Panel/Board – Fuse Symbol Map
