Buick Rendezvous 2006 SImple Electrical Circuit Wiring Diagram
| Cavity | Wire Color | CKT | Description |
|---|---|---|---|
| 1 | TAN / WHT | 816 | Brake Transmission Shift Interlock Solenoid Output (Oldsmobile) |
| 2 | PPL | 1807 | Serial Data Signal Class 2 |
| 4 | BLK | 150 | Ground |
| 5 | BLK/WHT | 451 | Engine Ground |
| 8 | BLK | 1455 | Keyless Entry Program Enable Signal |
| 9 | TAN | 800 | Serial Data Signal |
| 11 | WHT | 345 | Magnetic Steering Variable Assist Motor Feed-Low Effort |
| 14 | GRN DK | 835 | Diagnostic Signal Entertainment and Comfort |
| 16 | ORN | 40 | Fuse Output- Battery |

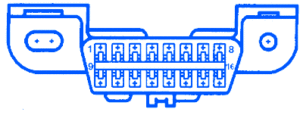

Buick Rendezvous 2006 SImple Electrical Circuit Symbol Map
