Cadillac Coupe Deville 1990 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| 1 | Amplifier Relay, Bose Radio | 20A |
| 2 | Not Used | - |
| 3 | Heated Outside Mirrors | 7.5A |
| 4 | Trunk Pull Down Unit | 20A |
| 5 | Emission Control System, Power Steering Pressure Switch | 15A |
| 6 | Engine Oil Pressure Switch, Fuel Pump Relay | 20A |
| 7 | Body Computer Module (BCM) | 15A |
| 8 | Pass Key Decoder Module, Electronic Control Module | 10A |
| Symbol | Relay Map |
|---|---|
| A | Power Antenna Relay |
| B | Amplifier Relay |
| C | Defogger Relay |
| D | Not Used |
| E | Retained Accessory Power Relay No.2 |
| F | Retained Accessory Power Relay No.1 |
| G | Electronic Level Control Relay |
| H | Fuel Pump Relay |
| J | Horn Relay |
| K | Not Used |

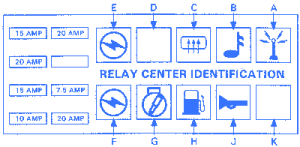

Cadillac Coupe Deville 1990 Fuse Panel/Board – Fuse Symbol Map
