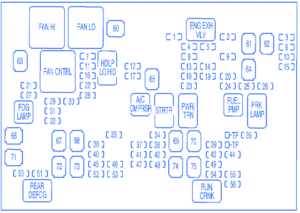

Cadillac SRX 2004 Engine Fuse Box/Block Circuit Breaker Diagram

Cadillac SRX 2004 Engine Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAPAMPS
MINI FUSES
MINI-FUSIBLES
1EXH VLV30A
2ESC/ALC EXH30A
3TRLR STOP LT10A
4ENG15A
5ECM/THROT CONT15A
6TRLR STOP RT10A
7FRT WASH15A
802 B SNSR10A
9ABS 225A
10TRLR BCK/UP10A
11LO HDLP-LT20A
12ECM-BATT10A
13INJ-B20A
14TCM-BATT10A
15VEH BCK/UP10A
16LO HDLP-RT20A
17A/C COMPRSR10A
1802-A SNSR10A
19TRANS IGN 115A
20FUEL PUMP20A
21HEADLAMP WASH20A
22REAR WASH15A
23INJ-A20A
24TRLR PRK15A
25LT PRK15A
26RT PRK15A
27FOG LAMP15A
28HORN15A
29HI HEADLAMP-RT10A
30DRL15A
31HI HEADLAMP-LT10A
32DRL 215A
33S/ROOF30A
34DLIS2A
35WPR25A
36SEO B230A
37EAP15A
38HVAC BATT10A
39AIRBAG IGN10A
40AMP30A
41RDO15A
42FWD15A
43MISC IGN10A
44L/GATE RELSE15A
45INFO15A
46IPC10A
47EXP/PTO15A
48HTD STR/WHL10A
49AUX HVAC-IGN10A
50REAR DEFOG30A
51AIRBAG BATT15A
52SEO B115A
53LTR20A
54SEO/ALC10A
55HVAC-IGN10A
56ECM-IGN15A
J-CASE FUSES
FUSIBLES JCASE
60FAN-140A
61ALC/COMP40A
62HEAVY DUTY ABS60A
63FAN-240A
64ABS-140A
65STRTR40A
66STUD-230A
67LBEC160A
68ELEC RUN BOARD30A
69WFHS60A
70TREC30A
71STUD-140A
72MBEC160A
73HVAC BLWR40A
74LGM30A
75LBEC260A

Cadillac SRX 2004 Engine Fuse Panel/Board – Fuse Symbol Map
