Chevrolet Aveo 2003 Fuse Box/Block Circuit Breaker Diagram

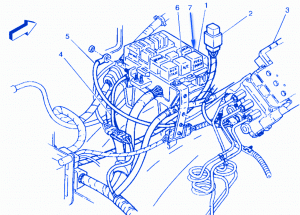

| Symbol | Description |
|---|---|
| 1 | Underhood Fuse Relay Center |
| 2 | Stop Lamp Relay |
| 3 | Electronic Brake Control Module (EBCM) |
| 4 | Glow Plug Relay Battery Feed |
| 5 | Battery Cable |
| 6 | A/C Relay |
| 7 | Fuel Pump Relay |
Chevrolet Aveo 2003 Fuse Panel/Board – Fuse Symbol Map
