Chevrolet Caprice 1989 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse map |
|---|---|---|
| 1 | 5A | Instrument Panel Lights |
| 2 | 20A | Choke Heater (1986-89), Alternator (1990) |
| 3 | - | Spare |
| 4 | 30A | Circuit Breaker Power Accessories |
| 5 | 3A | Engine Crank (1986 & 90), Spare (1987-89) |
| 6 | 25A | Heater & A/C |
| 7 | 10A | ECM Power Supply (1986 & 90), Spare (1987-89) |
| 8 | 10A | (1986 & 90) ECM Power Supply (Ignition Switch Controlled) |
| 7.5A | (1986 & 90) Injectors, Ignition | |
| - | (1987-89) Spare | |
| 9 | 25A | Windshield Wiper & Washer |
| 10 | 20A | Stoplights, Hazard Lights |
| 11 | 20A | (1986) Gauges, Warning Lights, TCC, VSS, Rear Window Defogger, Rear Deck Lid Release |
| 10A | (1987-89) Instrument Panel Gauges | |
| 20A | (1990) Instrument Panel Gauges |

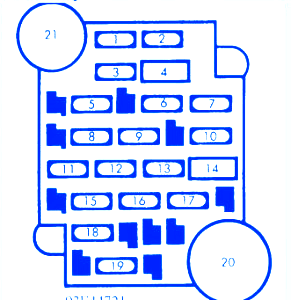

Chevrolet Caprice 1989 Fuse Panel/Board – Fuse Symbol Map
