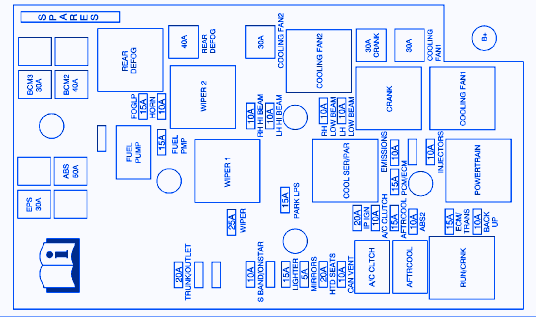

Chevrolet Cobalt 2009 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse/RELAY Map | AMPS |
|---|---|
| EPS | 30A |
| ABS | 60A |
| BCM3 | 30A |
| BCM2 | 40A |
| FUEL PUMP | 15A |
| FOGLP | 15A |
| HORN | 10A |
| TRUNK OUTLET | 20A |
| S BAND/ON START | 10A |
| LIGHTER | 15A |
| MIRRORS | 5A |
| HTD SEATS | 20A |
| CAN VENT | 10A |
| WIPER | 25A |
| PARK LPS | 15A |
| IP IGN | 20A |
| A/C CLUTCH | 10A |
| AFTR/COOL | 15A |
| ABS2 | 10A |
| ECM TRANS | 15A |
| BACK UP | 10A |
| PCM/ECM | 15A |
| EMISSIONS | 10A |
| INJECTORS | 10A |
| RH HI BEAM | 10A |
| LH HI BEAM | 10A |
| RH LOW BEAM | 10A |
| LH LOW BEAM | 10A |
| COOLING FAN2 | 30A |
| REAR DEFOG | 40A |
| CRANK | 30A |
| COOLING FAN1 | 30A |
Chevrolet Cobalt 2009 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
