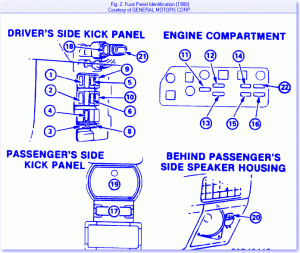

Chevrolet Nova Twin Cam 1988 Fuse Box/Block Circuit Breaker Diagram

Chevrolet Nova Twin Cam 1988 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolRatingFuse Map
17.5ARadio/Stereo Cassette
215AStoplights
315AInstrument Lights, Parking Lights, Radio, Tail Lights
47.5AInterior Lights, Open Door Warning Light
57.5ASystem Warning Light
615ACigarette Lighter
7-Open
820Awindshield Wipers, Windshield Washer
97.5ATurn Signal Lights, Turn Signal Indicator Lights
107.5ABack-Up Lights, Temperature Gauge, Fuel Gauge, Heater Main Relay, Cruise Control System, Seat Belt Reminder Light/Buzzer, Warning Lights, Electronically Controlled 4-Speed Automatic Transaxle
1120ACharging System Warning Light, Emission Control System
1215ALeft Headlights
1315ARight Headlights
1410AHorn, Emergency Flashers
1510AGenerator Witch 1C Regulator (1G Terminal), Emission Control System, Fuel-Cut Solenoid, Charging System Warning Light Relay Electronicslly Controller 4-Speed Automatic Transaxle

Chevrolet Nova Twin Cam 1988 Fuse Panel/Board – Fuse Symbol Map
