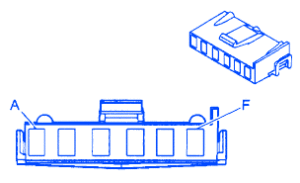

Chevrolet Tahoe 5.3 2001 Stop Lamp Switch Electrical Circuit Wiring Diagram
| PIN | WIRE COLOR | FUNCTION |
|---|---|---|
| A | WHT | Stop Lamp Switch Signal |
| B | ORN | Battery Positive Voltage |
| C | PPL | TCC Brake Switch Signal |
| D | BRN | Ignition 3 Voltage |
| E | LT GRN/BLK | A/T Shift Lock Control Switch Supply Voltage |
| F | DK GRN/WHT | A/T Shift Lock Control Solenoid Supply Voltage |
Chevrolet Tahoe 5.3 2001 Stop Lamp Switch Electrical Circuit Symbol Map
