Chevy Malibu 2010 Instrument Panel Fuse Box/Block Circuit Breaker Diagram

Chevy Malibu 2010 Instrument Panel Fuse Box/Block Circuit Breaker Diagram



FusesUsage
POWER MIRRORSPower Mirrors
EPSElectronic Power Steering
RUN/CRANKCruise Control Switch, Passenger Airbag Status Indicator
HVAC BLOWER HIGHHealing Ventilation Air Conditioning Blower High Speed Relay
CLUSTER/THEFTInstrumnet Panel Cluster, Theft Deternt Sytem
ONSTARTOnStar
NOT INSTALLEDNot Used
AIRBAG (IGN)Airbag (Ignition)
HVAC CTRL (BATT)Healing Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDALNot Used
WIPER SWWindshield Wiper/Washer Switch
IGN SENSORIgnition Switch
STRGL WHL ILLUMSteering Wheel Illumination
NOT INSTALLEDNot Use
RADIOAudio System
INTERIOR LIGHTSInterior Lights
NOT INSTALLEDNot Used
RADIOAudio System
INTERIOR LIGHTSInterior Lights
NOT INSTALLEDNot Used
POWER WINDOWSPower Windows
HVAC CTRL (IGN)Heating Ventilation Conditioning Control (Ignition)
HVAC BLOWERHeating Ventilation Conditioning Blower Switch
DOOR LOCKDoor Locks
ROOF HEAT SEATSunroof, Heated Seat
NOT INSTALLEDNot Used
NOT INSTALLEDNot Used
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
FUSE PULLERFuse Puller

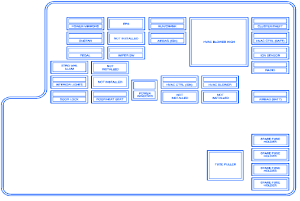

Chevy Malibu 2010 Instrument Panel Fuse Panel/Board – Fuse Symbol Map
