Chevy Uplander 2006 Fuse Box/Block Circuit Breaker Diagram

Chevy Uplander 2006 Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAPAMPS
MINI FUSE
1TRUCK/LKS15A
2ELC20A
3RR WPR15A
4RADIO AMP20A
5INT/LAMP10A
6ONSTAR10A
7RFA MDLS10A
8CLSTR/HVAC10A
9CRUISE/SWTCH2A
10STRG WHL ILLUM2A
11PWR/MIR10A
12STOP/TRN20A
13HTD/SEATS20A
14-
15ELC25A
16HTD/MIR10A
17CHMLSL BCK/UP15A
18-
19CNSTR/VENT10A
20PRK/LAMP10A
21PSD15A
22-
23-
J-CASE FUSE
24LH-PSD40A
25RH-PSD40A
RELAY
26-
27-
28PRK LAMP
29RAP
30RR DEFOG

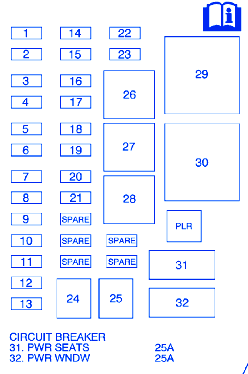

Chevy Uplander 2006 Fuse Panel/Board – Fuse Symbol Map
