Chrysler Cirrus 1998 Engine Fuse Box/Block Circuit Breaker Diagram

Chrysler Cirrus 1998 Engine Fuse Box/Block Circuit Breaker Diagram



SYMBOLAMPSDESCRIPTION
110ADownstream Heated O2 Sensor
220AAnti-Lock Brake Controller
320ATransmission Control Relay & Module
420AJunction Block, Fuse 5/Brake Light Sw
520AAutomatic Shutdown Relay/PCM
620ACombination Flasher in Multifunction Sw
710AIgnition Switch
820AStarter Relay/Fuel Pump Relay
910A2Radiator Fan Relays/ AC Compressor/ Instrument Cluster/ Travel Computer
1010APCM/Antilock Brake Controller
11--
1240ARear Window Defogger Relay
1340AAntilock Brake Controller
1440AJunction Block, Fuse7 & 8
1540AHeadlamp Switch/ Headlamp Delay Relay
1640AIgnition Switch
17--
1840AIntermittent Wiper Relay
1940A2Radiator Fan Relays/ AC Compressor

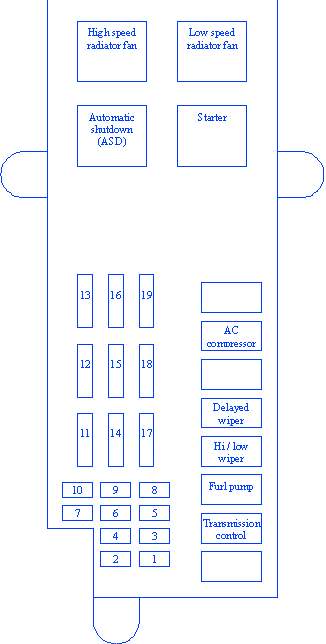

Chrysler Cirrus 1998 Engine Fuse Panel/Board – Fuse Symbol Map
