CAVITYAMPSCOLORITEMS FUSED
15ATNHeated Mirrors
210ARDTime Delay Relay, Radio Electronics, Cluster, Entry, Mini Trip Computer, Glove Box, Trunk, Vanity mirror, Damp, Map, Ignition Switch, Door Courtesy, Reading Underhood & Underpanel Courtesy Lamps
310ARDRight Headlamp, Fog Lamps
410ARDLeft Headlamp
54APKIllumination Lamps for A/C and Heater Control, ASH Receiver, Cluster, Radio, Console Gear Selector, Cigar Lighter, Console Glove Box & Mini Trip Computer, Heater Rear Window
620AYLName Brand Speaker Amplifier, Horn Relay
72AWTVehicle Speed Control
85ATNFuel Voltage Oil and Temperature Gauges, Chimes, Warning Lamp Module, Seat Belt Warning & Brake Warning Lamps, Mechanical Cluster Printed Circuit Board, Pasive Seat Belt
930ALGA/C or Heater Blower Motor
1030AC/BRKRPower Windows
1110ARDAir Bag, Back-up Lamps, Heated Rear Window, Overheat Console, Transmision Control
1220AYLHazard Flasher
1330AC/BRKRPower seat and Door Lock Motors
1420AYLHeadlamp Switch
1520AYLCHME, Fog Lamps, Door Locks, Air Bag Module
1620AYLStop Lamps, Turn Signals

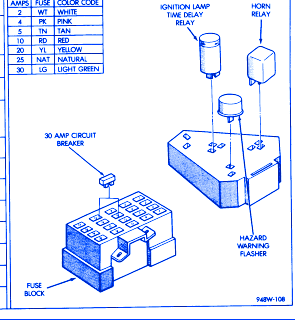

Chrysler Concorde 1994 Fuse Panel/Board – Fuse Symbol Map
