Chrysler Conquest 2.6L 1987 Fuse Box/Block Circuit Breaker Diagram

Chrysler Conquest 2.6L 1987 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
110ADome Light
215AStoplights
315AHazard
410AHeadlight Pop-Up Motors
515AMotor Antenna
615ATaillights
720AHeater
815AHorn
915AWiper
1010ARadio
1110AGauges
1210ATurn Signal
1310ABack-Up Lights

Fuse SymbolAmpsFuse Map
110ADome Light
215AStoplights
315AHazard
410AHeadlight Pop-Up Motors
520AHeater
615ATaillights
710AAir Conditioner
815AAntenna Motors
915AHorn
1015AWiper
1110ARadio
1210ADefogger Relay
1310ATurn Signals
1410ABack-Up Lights

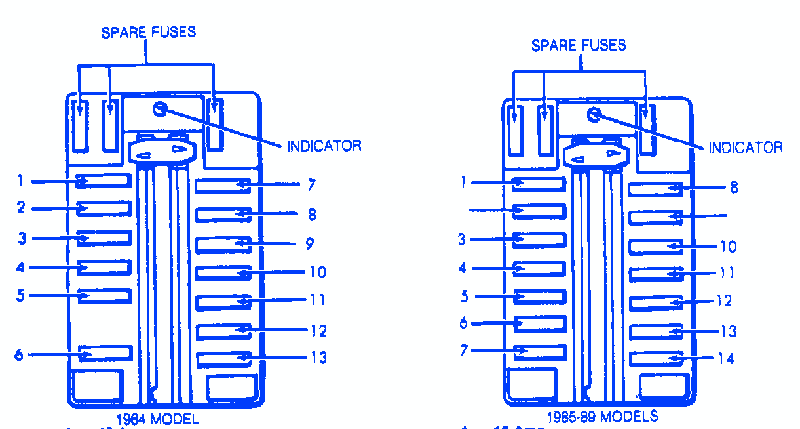

Chrysler Conquest 2.6L 1987 Fuse Panel/Board – Fuse Symbol Map
