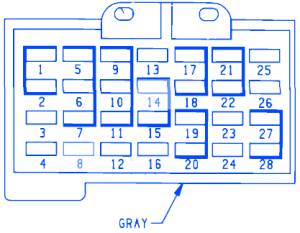

Chrysler Lebaron Convert 1993 Fuse Box/Block Circuit Breaker Diagram

Chrysler Lebaron Convert 1993 Fuse Box/Block Circuit Breaker Diagram



CAV CIRCUITDESCRIPTION
1C1 120GBlower Motor Feed
2A22 12BK/0RIgnition Switch Feed
F21 12TNPower Windows
3A3 12RD/WTHeadlamp Switch Relay
F35 14RDBattery Feed Power Seats
5F20 18WTLamp Switch Feed, Backup
6A22 12BK/0RIgnition Switch Feed
L5 18BK/PKHigh Beam Relay
7V23 18BR/PKRear Wiper Feed (G Body)
8L7 18BK/YLRight Tail Lamp
E1 20BRCluster Lamp
9F39 18PK/LGFog Lamps Feed (G Body)
10F33 18PK/RDFused Battery Feed
A7 12RD/YLFused Block Feed
11F30 14RDCigar Lighter Feed
12F75 12VTRS Amplifier Feed
14G5 20DB/WTFeed For Warning Lamps & Gauges
A21 12DBIgnition Start/Run
15V34 20WT/RDSpeed Control System
17L47 20VT/GYlamp Outage Module
L43 20VT W/O LampoutageHeadlamp Feed
18L4 12VT/WTTo Headlamp
L48 20VT/PKHeadlamp (RT) or Outage Module (L48)
L48 20VT/PKHeadlamp (RT) or Outage
L44 20VT/RD W/O LampoutageModule (L48)
19L3 12RD/ORHigh-Beam Feed
L33 20RDLeft High-Beam
20L34 20RD/ORRight High-Beam
21A3 12RD/WTHeadlamp Switch Feed
F32 18PK/DBStop Lamp Switch
22A3 12RD/WTHorn Feed
F31 18VTSwitch
25C16 20LB/YLHeated Mirror Feed
C15 12BK/WTHeated Rear Window Relay
26A5 18RDCourtesy Lamps Feed
M1 20PKDome and Courtesy Lamp Switch
27X12 20RD/BKRadio Feed
28F13 18DBFront Wiper Park
A31 12BK/WTIgnition Switch ACC

Chrysler Lebaron Convert 1993 Fuse Panel/Board – Fuse Symbol Map
