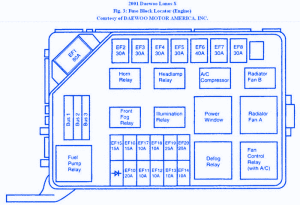

Daewoo Lanos 2001 Engine Fuse Box/Block Circuit Breaker Diagram

Daewoo Lanos 2001 Engine Fuse Box/Block Circuit Breaker Diagram



Fuse symbolAmpsFuse map
F210AEF1Clock, Door Open Warning Lamp,Head Lamp Combination Switch, DLC, Key Reminder Switch
F315AEF1Hazard Lamp
F415AEF1Door Lock, Keyless Entry Module
F510AEF1ABS, PCM/ECM
F610AEF1Audio
F715AEF1Center High-Mounted Stoplamp, Stop Lamp
F8(Diode)
F910AACCAudio, Key Interlock System
F1015AACCCigar Lighter
F1110AIGN1Instrument Cluster, Clock,Daytime Running Lamp,Chime Module
F1210AIGN1Backup Lamp, Keyless Entry Module
F1315AIGN1Supplemental Inflateble Restraints
F1415AIGN1Injectors, Generator, EGR Valve, Vehicle Speed Sensor, EVAP Canister Purge Valve, Post-Converter Oxygen Sensor, Camshaft Position Sensor, PCM/ECM
F1515AIGN1Ignition Control Module
F1615AIGN1Turn Signal Lamp, Electric Outside Rearview Mirror
F1715AIGN1PCM/ECM, ABS Warning Lamp, Variable Geometry Induction Selenoid
F1820AIGN2Wipers/Washer System
F1910AIGN2Power Window Relay, A/C Compressor Relay, Radiator Fan Relays, Defogger Relay, ABS Relay, Sunroof Switch
F2020AIGN2Blower Position 1, 2, 3

Daewoo Lanos 2001 Engine Fuse Panel/Board – Fuse Symbol Map
