Dodge Dynasty 1993 Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | CIRCUIT | FUNCTION |
|---|---|---|---|
| A | 30A | A20 14RD/LG | ABS SYSTEM |
| B | 30A | A10 14RD/WT | ABS SYSTEM |
| C | 50A | A3 10RD/WT | VEHICLE LAMPS |
| D | 30A | A16 14GY | RADIATOR FAN |
| E | 40A | A4 12BK/PK | HEATED REAR WINDOW |
| F | 50A | A7 10RD/BK | PARK LAMPS |
| G | 40A | A1 12RD | IGNITION SYSTEM |
| H | 50A | A2 10PK/BK | BLOWER MOTOR |
| J | 30A | A14 14RD/WT | FUEL PUMP TRANS |
| F1 | 25A | A4 12BK/PK | HEATED REAR WINDOW |
| F15 16OB/WT | FEED | ||
| F2 | 20A | A15 14BK | HAZARD FLASHER FEED |
| A15 18PK/WT |
| CAV | CIRCUITS | FUNCTION |
|---|---|---|
| BB | A0 6BK | BATTERY FEED |
| BB | A11 6BK/GY | GENERATOR FEED |

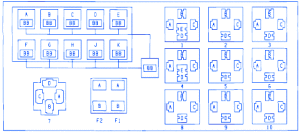

Dodge Dynasty 1993 Fuse Panel/Board – Fuse Symbol Map
