Dodge Laramie 1500 2004 Electrical Circuit Wiring Diagram

Dodge Laramie 1500 2004 Electrical Circuit Wiring Diagram

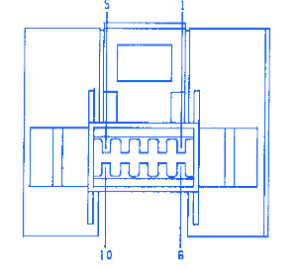

CAVCIRCUITFUNCTION
1Z2 22BK/LGSENSOR GROUND
2D2 20WT/BKSERIAL BUS (-)
3D1 20VT/BRSERIAL BUS (+)
4--
5L60 18TNRIGHT FRONT TURN SIGNAL
6F11 22RO/WTFUSED IGNITION OFF (5 AMP)
7--
8F33 20PK/RDHEADLAMP FEED
9D14 22LBDECODE-HIGH INSTRUMENT CLUSTER
10D13 22OR/DBDECODE-LOW INSTRUMENT CLUSTER
