Dodge Vision 1997 Main Fuse Box/Block Circuit Breaker Diagram

Dodge Vision 1997 Main Fuse Box/Block Circuit Breaker Diagram



CAVITYDESCRIPTIONSIZE
1POWER MIRROR5A
2RADIO, CELLULAR PHONE UNIT10A
3TURN SIGNALS10A
4STOP LAMPS20A
5HEAD LAMP SENSE5A
6HEATER, A/C, ATC10A
7AIR BAG10A
8CIG, LIGHTER, AMPLIFIER, HORN20A
9I/P ILLUM, LAMPS, PARK LAMPS15A
10WIPERS10A
11HEAD LAMP-LEFT HIGH BEAM15A
12HEAD LAMP-RIGHT HIGH BEAM15A
13INTERIOR LAMPS10A
14VEHICLE SPEED/MESSAGE CENTER5A
15HEAD LAMP-LEFT LO BEAM15A
16HEAD LAMP-RIGHT LO BEAM15A
17EATX, GAUGES, PRNDL5A
18FUEL PUMP10A
19AIR BAG10A
20RADIATOR FAN10A
21BLOWER MOTOR25A
22POWER WINDOWS20A
23POWER SEATS AND LOCKS20A
24--

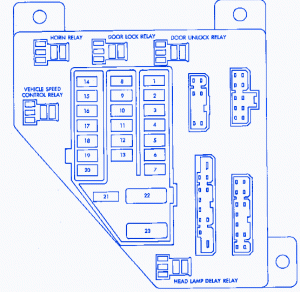

Dodge Vision 1997 Main Fuse Panel/Board – Fuse Symbol Map
