FORD Aerostar Wagon XLT 1999 Fuse Box/Block Circuit Breaker Diagram

FORD Aerostar Wagon XLT 1999 Fuse Box/Block Circuit Breaker Diagram

Fuse PositionAmpsCircuit Protected
115ATurn/Stop/Hazard Lamps
26 c.b.Windshield Wiper/Washer
3-Not Used
415AExterior Lamps, Instrument Illumination
515ATurn/Stop/Hazard Lamps, Electronic Engine Module, Rear Window Defrost, Shift Lock, Daytime Running Lamps, Air Bag Restraint System
620ASpeed Control, Warning Chime, Illuminated Entry, A/C Heater
720ARear Anti-Lock Brakes
815AInterior Lamps, Radio, Instrument Cluster, Power Mirror
930AA/C-Heater
1015AAir Bag Restraint System
1115ARadio
1230APower Lumbar Seats, Headlamps, Horns
135AInstrument and Control Illumination
1420 c.b.Power Windows
1515AElectronic 4 Wheel Drive
1620AFront Cigar Lighter, Rear Cigar Lighter
1710AInstrument Cluster
1815AWarning Chime, Instrument Cluster, Liftgate Wiper Washer
Note: Power Door Locks Are Protected By a 30 Amp in-line Fuse

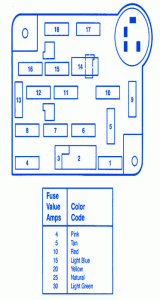

FORD Aerostar Wagon XLT 1999 Fuse Panel/Board – Fuse Symbol Map
