Ford F 250 4WD 2000 Mini Fuse Box/Block Circuit Breaker Diagram

Ford F 250 4WD 2000 Mini Fuse Box/Block Circuit Breaker Diagram



Fuse/Relay LocationAmpsDescription
120AElectronic Flasher
25AInstrument Cluster, Powertraint Control Module (PCM) Keep Alive Memory
320ACigar Lighter, OBDII
410AGlove Box Lamp, Map Lamps, Power Mirrors, Underhood Lamp
5-Not Used
6-Not Used
75APower Window Lock Switch Illumination

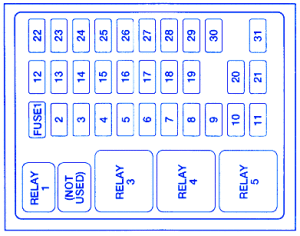

Ford F 250 4WD 2000 Mini Fuse Panel/Board – Fuse Symbol Map
