Ford F350 Lariat 2006 Power Distribution Fuse Box/Block Circuit Breaker Diagram

Ford F350 Lariat 2006 Power Distribution Fuse Box/Block Circuit Breaker Diagram



Fuse PositionAmpsCircuits protected
17.5AMiniTrailer Tow Package
210AMiniAir Bag Diagnostic Module
37.5AMiniTrailer Tow Package
420AMiniTrailer Backup Lamp Relay, Trailer Park Lamp Relay
55AMiniGenerator/Voltage Regulator (Secondary)
610AMinienerator/Voltage Regulator, PDB Fuses5,7
75AMInienerator/Voltage Regulator
815AMiniMain Light Switch
910AMiniLeft Headlamp
1025AMiniAuxiliary Power Socket
1110AMiniRight Headlamp
1210AMiniDRL Resistor
1330AMaxiMain Light Switch, Multi-Function Switch, Headlamps
1460AMaxiAnti-Lock Brake System (ABS) Module
1530AMaxiWindshield Wiper/Washer Relay, Windshield Wiper/Washer Motor
1630AMaxiTrailer Battery Charge Relay
1730AMaxiTransfer Case Shift Relay
1830AMaxiPower Seat Control Switch
1920AMaxiFuel Pump Relay
2050AMaxiIgnition Switch (B4 & B5)
2150AMaxiIgnition Switch (B1 & B3)
2250AMaxiJunction Box Fuse/Relay Panel Battery Feed
2340AMaxiBlower Relay
2430AMaxiPCM Power Relay
2530ACBJunction Box Fuse/Relay Panel, Accessory Delay Relay, Power Window
2620AMaxiAll Unlock Relay, All Lock Relay, Driver Unlock Relay, LH Power Door Lock Switch, RH Power door Lock Switch, Park Lamp Relay
2730AMaxiIDM Relay
2830AMaxiTrailer Electronic Brake Controller
2920AMaxiRadio

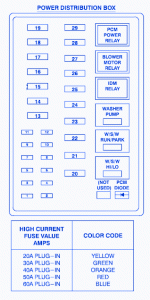

Ford F350 Lariat 2006 Power Distribution Fuse Panel/Board – Fuse Symbol Map
