Ford Kuga 2008 Under Dash Fuse Box/Block Circuit Breaker Diagram

Ford Kuga 2008 Under Dash Fuse Box/Block Circuit Breaker Diagram



Fuse PositionAmpsCircuit Protected
1-Not Used
25AInstrument Illumination
310ALeft Low Beam Headlamp
410ARigh Low Beam Headlamp
55ABrake Shift Interlock, Rear Defrost
615AMLPS Switch, Backup Lamps, Speed Control
710AMLPS Switch, Starter Relay
85APower Antenna, RCU, GEM
910AABS
1020APCM Relay, Ignition Coil, PATS, Radio
115AInstrument Cluster
125AInstrument Cluster, Autolamps, Transmission Control Switch, ICP, GEM
135AAir Bag, Blower motor, EATC
145AAir Suspension
1510AMulti-function Switch (turn Signal)
16-Not Used
1730AFront Wiper/Washer
185AHeadlamp Switch
1915ARear Wiper/Washer

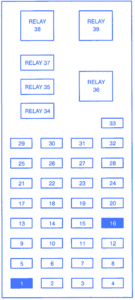

Ford Kuga 2008 Under Dash Fuse Panel/Board – Fuse Symbol Map
