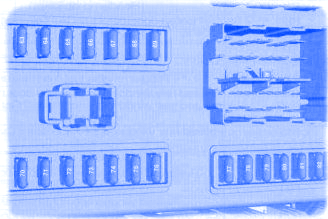

Ford Nitemare 2007 Main Fuse Box/Block Circuit Breaker Diagram

Ford Nitemare 2007 Main Fuse Box/Block Circuit Breaker Diagram



FuseAmpsColourCircuits Protected
635ATanRear Parking Aid, Rain Sensor
642AGreyAcceleration Pedal Demand Sensor
6515ABlueBrake Lamp Switch
665ATanInstrument Cluster, PATS Supply, Tachograph, Instrument Panel Switch Illumination
6710ARedWiper Stalk Switch
6810ARedRestraints Control Module
6920AYellowExterior Lamp Switch (KL15)
7020AYellowBattery Backed Sounder
715ATanExterior Lamp Switch (KL30)
7210ARedBattery Saver Supply, OBDII (KL30)
7315ABlueRadio, Navigation Unit and Phone Supply
745ATanInstrument Cluster, Fuel-Fired Booster Heater Timer, Remote Keyless Entry Supply, Interior Motion Sensor (KL30)
755ATanSide Lamps Right-Hand Side
767.5ABrownSide Lamps Left-Hand Side
775ATanIgnition Switch Supply, Battery Disconect Switch Coils Supply
7815ABlueCentral Locking
797.5ABrownNumber Plate Lamp, Side Markers
8015ABlueFront Fog Lamps
8110ARedRear Fog Lamps
822AGreyRadio, Navigation Unit, Instrument Cluster

Ford Nitemare 2007 Main Fuse Panel/Board – Fuse Symbol Map
