Ford Taurus GL 1993 Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Light Out Warning Module (SHO) |
| 2 | Power Antenna Module |
| 3 | A/C Solenoid Sensor |
| 4 | Passenger Air Bag Delete Connector or Accessory Relay (Police) |
| 5 | Air Bag Diagnostic Module |
| 6 | Light Dual Coil Relay |
| 7 | LCD Dimming Relay |
| 8 | Horn Relay |
| 9 | Low oil Level Relay |
| 10 | Warning Chime Module |
| 11 | Figlight Relay(S-IO) Rear Window Defogger Timer (Sable) |
| 12 | Windshield Wiper Curifuel module |
| 13 | Light Sensor/Amplifiel |
| 14 | Foglight In-Line Fuse |
| 15 | light Cut Warning Module (Except SHO) |
| 16 | Clutch Pedal Position Switch |
| 17 | Clutch Pedal Position Switch |
| 18 | Electronic Flasher (Turn Signal/Hazard) |
| 19 | Variable Assist Power Steering (VAPS) Module |
| 20 | A/C Heater Blower Motor |
| 21 | Temperature Blond Door Actuator |
| 22 | A/C Heater Blower Motor Resitor, or A/C Heater Blower Speed Controller |
| 23 | Speed Control Amplifier |
| 24 | ABS Fedal Travel Switch |
| 25 | Brake On/Off (BOO) Switch |
| 26 | Accessory Connectors (Police) |
| 27 | A/C In-Car Temperature Sensor |
| 28 | Electronic Automatic Temperature Control (FAT) Module |
| 29 | Shift Lock Actuator |

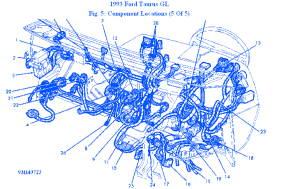

Ford Taurus GL 1993 Electrical Circuit Symbol Map
