Ford Windstar 1995 Inside Fuse Box/Block Circuit Breaker Diagram
| FUSE POSITION | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| 1 | 10A | Power Mirrors, I/P Warning Indicator Display |
| 2 | 5A | Lamp Out Warning Module, Start Interrupt Relay, GEM |
| 3 | 5A | Instrument Illumination |
| 4 | - | Not Used |
| 5 | - | Not Used |
| 6 | 15A | Rear Power Windows |
| 7 | 15A | Brake On/Off (BOO) Switch |
| 8 | 25A | Radio Amplifier, Subwoofer Assembly |
| 9 | 10A | Exterior Lights |
| 10 | 2A | Instrument Cluster (Digital) |
| 11 | 15A | Main Light Switch, Remote/Keyless Entry Module, Autolamps Park Lights Relay |
| 12 | 10A | I/P Warning Indicator Display, GEM, Radio, Remote Headphone Module, Lamp Out Warning Module, Anti-Theft Controller Module, Remote/Keyless Entry Module |
| 13 | 15A | Radio, Compact Disc |
| 14 | 5A | Instrument Cluster, Air Bag Diagnostic Module, Electronic Day/Night Morror |
| 15 | - | Not Used |
| 16 | 20A | Horns |
| 17 | 15A | Fog Lamps |
| 18 | 25A | Windshield Wiper/Washer System |
| 19 | 10A | GEM, Instrument Cluster |
| 20 | 25A | Ignition Coil, PCM Power Relay |
| 21 | 10A | Brake Shift Interlock, Rear Window Defrost, GEM, A/C - Heater Control Switch, Air Bag Diagnostic Module, Instrument Cluster,Blend Door Actuator |
| 22 | 20A | power Plug, Rear Cigar Lighter |

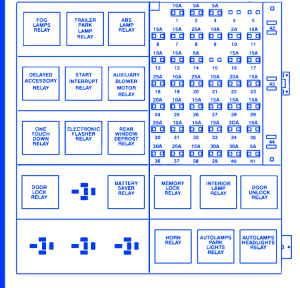

Ford Windstar 1995 Inside Fuse Panel/Board – Fuse Symbol Map
