Geo Storm Hatchback 1.6 OHC 1991 Relay Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map |
|---|---|
| E-1 | Blower Motor |
| E-2 | Air Con. |
| E-3 | — |
| E-4 | Condenser Fan |
| E-5 | H/Lamp Cover |
| E-6 | — |
| E-7 | H/Lamp-LH |
| E-8 | H/Lamp-RH |
| E-9 | — |
| E-10 | — |
| Fusible Links | |
| FL-1 | Key Sw |
| FL-2 | Main |
| FL-3 | Ecm |
| FL-4 | Radiator Fan |

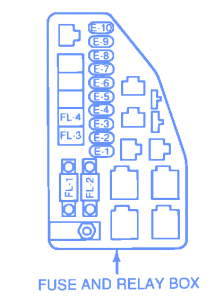

Geo Storm Hatchback 1.6 OHC 1991 Relay Fuse Panel/Board – Fuse Symbol Map
