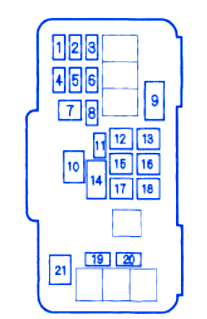

Honda Accord 2003 Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS. | CIRCUITS PROTECTED |
|---|---|---|
| 1 | 20A | Left Headlight |
| 2 | - | Not Used |
| 3 | 20 | Right Headlight |
| 4 | 20A | ABS F/S |
| 5 | 20A | Stop |
| 6 | 15A | ACG |
| 7 | 30A | ABS Motor |
| 8 | 15A | Hazard |
| 9 | - | Spare Fuse |
| 10 | 100A | Battery |
| 11 | 20A | Cooling Fan |
| 12 | 40A | Back Up. ACC |
| 13 | 40A | Power Window Motor |
| 14 | - | Spare Fuse |
| 15 | 40A | power Seat |
| 16 | - | Not Used |
| 17 | 40A | Heater Motor |
| 18 | 40A | Rear Defroster |
| 19 | 20A | Seat Heater |
| 20 | 20A | Condenser Fan |
| 21 | 50A | IG1 Main |
Honda Accord 2003 Fuse Panel/Board – Fuse Symbol Map
