Honda Accord EX4 1992 Engine Fuse Box/Block Circuit Breaker Diagram

Honda Accord EX4 1992 Engine Fuse Box/Block Circuit Breaker Diagram

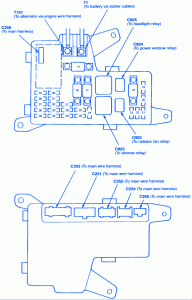

SYMBOLDESCRIPTION
T1To Battery Via Starter Cables
T101To Alternator Via Engine Wire Harness
C251To Main Wire Harness
C252To Main Wire Harness
C253To Main Wire Harness
C254To Main Wire Harness
C255To Main Wire Harness
C256To Main Harness
C922To Radiator Fan Relay
C923To Dimmer Relay
C924To Power Window Relay
C925To Headlight Relay

Honda Accord EX4 1992 Engine Fuse Panel/Board – Fuse Symbol Map
