Honda LX 1986 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuit Protected |
|---|---|---|
| 1 | 15A | Charging Sysytem, PGM-FI Main Relay |
| 2 | 10A | Safety Indicator, Clock, Coolant Temperature Gauge, Fuel Gauge, Tachometer, Back Up Lights, Integrated Unit, Cruise Control on Indicator, Shift Indicator Panel, Warning Lights (Brake, Fuel Level, Oil Pressure, Seat Belt), Power Door Lock Control Unit |
| 3 | 20A | Sunroof Relays, Wiper Motors, Washer Motors, Power Window Relay |
| 4 | 7.5A | Cruise Control Switch |
| 5 | 10A | Rear Window Defogger, fresh/Recirculating Motor, Heater Vacuum Controls, Fan and Air Conditioner |
| 6and7 | 10A | Headlight Low Beams |
| 8and9 | 15A | Headlight High Beams, High Beam Indicator |
| 10 | 7.5A | Bulb Check |
| 11 | 15A | Headlight Retractor Control Unit |
| 12 | 15A | Fans and Air Conditioner |
| 13 | 10A | Radio, Power Antenna |
| 14 | 15A | Lights (Front and Rear Marker, License Plate, Tail), Dash and Console Lights, Safety Indicator |
| 15 | - | Not used |

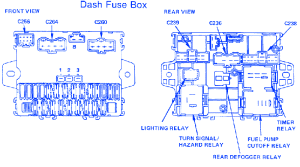

Honda LX 1986 Fuse Panel/Board – Fuse Symbol Map
