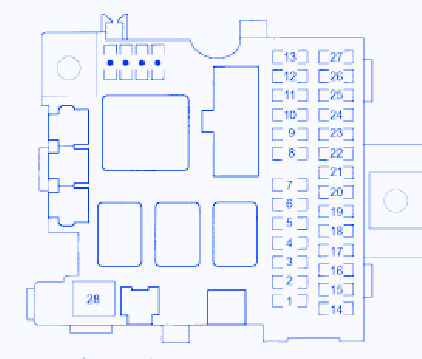

Honda S2000 2006 Engine Fuse Box/Block Circuit Breaker Diagram

Honda S2000 2006 Engine Fuse Box/Block Circuit Breaker Diagram



FUSE NUMBERFUSE NAMEAMPSCOMPONENT OR CIRCUIT PROTECTED
1SRS10ASRS Unit (VB)
2FUEL PUMP SRS15AECM ('05), Fuel Cut Relay, PGM-FI Main Relay ('00-'04), SRS Unit (VA)
3FR WIPER20AIntermittent Wiper Relay, Windshield Wiper Motor, Wiper/Washer Switch
4FI-ECU7.5AAF Sensor Relay (Late Production '01,'02-'05), DC-DC Converter, ELD Unit, EVAP Bypass Solenoid Valve, EVAP Canister Vent Shut Valve, EVAP Canister Purge Valve, Secondary HO2S, TCM(CVT), VSS
5TURN LIGHT7.5AHazard Warning Switch
6METER7.5AEPS Control Unit, Gauge Assembly, Hazard Warning Switch, Keyless Door Lock Control Unit, Power Window Master Switch, Power Window Relay, Shift Lock Solenoid (CVT)
7IG COIL15AIgnition Coils
8POWER WINDOW-AS20APower Window Master Switch
9STARTER7.5AECM, Starter Cut Relay
10POWER WINDOW-DR20APower Window Master Switch
11ACC RADIO7.5AAudio Unit
12ACC SOCKET10AAccessory Power Socket
13--Not Used
14LAF HEATER20AA/F Sensor Relay (Late Production '01,'02-'05)
15SMALL LIGHT10AAudio Unit, Climate Control Unit/Heater Control Panel, Front Parking Lights, Fuel Consumption Display Select Switch, Gauge Assembly, Hazard Waning Switch, License Plate Light, Power Window Master Switch, Taillights, Park Pin Switch (CVT), Front Side Marker light

Honda S2000 2006 Engine Fuse Panel/Board – Fuse Symbol Map
