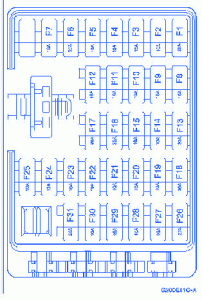

Hyundai Santa Fe V6 2002 Fuse Box/Block Circuit Breaker Diagram

Hyundai Santa Fe V6 2002 Fuse Box/Block Circuit Breaker Diagram



FuseRatingProtected Components
F120ACigarette Lighter & Power Outlet
F210AAudio, Power Outside Mirror
F315ADigital Clock, Rear Power Outlet
F410ACruise Control
F510AHeadLamp Relay
F625ASeat Warmer
F710ARear Wiper Motor Control
F810ARear Window Defogger, Power Outside Mirror
F910AA/C Control, Sunroof Controller, Electrical Chrome Mirror
F10-Not Used
F1110ARoom Lamp, Door Warning Switch, Door Lamp, Manual A/C Control, Homelink Controller
F1215ADigital Clock, ETACM, Audio, Siren
F1320AAMP Speaker
F1410AStop Lamp, Data Link Connector, Multipurpose Check Connector
F1510AHazard Lamp
F1625APower Seat, Rear Wiper Motor Control
F1720ASunroof Controller
F1830ADefogger Relay
F1910AInstrument Cluster, Pre-axcrtation Resistor, ETACM, Auto Light Sensor, DRL Control Module, Generator
F2015ASRS Control Module
F2110AECM (V6 2.7L)
F2210AInstrument Cluster (Airbag IND)
F2310AABS Control Module, G-Sensor, Air Bleckcling Connector, 4WD Control Module
F2410ATurn Signal Lamp
F2510ABack-Up Lamps, TCM, Vehicle Speed Sensor, Ignition Sensor
F2620ADoor Lock/Unlock Relay, Key Lock/Unlock Relay
F2710ATail & Parking Lamp (LH), Turn Signal Lamp, License Lamp
F2810ATail & Parking Lamp (RH), Fog Lamp Relay, Switch Illumination
F2915ABTS Contrl Module (V6 3.5L), Tail Safety Relay
F3010ARadiator Fan Relay, Condenser Fan Relay
F3120AFront Wiper Motor, Wiper Relay, Washer Motor

Hyundai Santa Fe V6 2002 Fuse Panel/Board – Fuse Symbol Map
