Hyundai Tucson 2006 Inter Panel Fuse Box/Block Circuit Breaker Diagram

Hyundai Tucson 2006 Inter Panel Fuse Box/Block Circuit Breaker Diagram



FUSEFUSE RATINGPROTECTED COMPONENTS
P/WDW-LH30ALeft Power Window
P/WDW-RH30ARight Power Window
TAIL RH10ARight Rear Combination Lamp, Glove Box Illumination
RR HTR30ARear Defogger
A/BAG15ASRS Control
CLUSTER10AInstrument Cluster, ETACM/TACM
TAIL LH10ALeft Head Lamp, Left Rear Combination Lamp, License Lamp
AUDIO10ADigital Clock,Audio, Power Outside Mirror Folding Module, Power Outside Mirror & Mirror Folding Switch
C/LIGHTER & P/OUTLET20ACigarette Lighter
SPARE15ASpare
RR FOG10ARear Fog Lamp
HTD MIRR10ALeft/Right Power Outsider Mirror & Mirror Folding Motor, Rear Defogger Switch
AUDIO10AAudio
IG COIL20AIgnition Coi(2.7L)
IMMO10AAImmobilizer Control Module (2.7L)
P/OUTLET15ARear Power Outlet
10ANot Used
S/HTR20ASeat Warmer
A/CON SW10AA/C Control Module (ManualA/C)
START10ATheft Alarm Relay, Transaxle Range Switch, Ignition Lock Switch

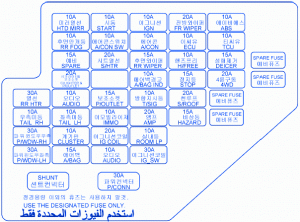

Hyundai Tucson 2006 Inter Panel Fuse Panel/Board – Fuse Symbol Map
