Infiniti G20 1998 Fuse Box/Block Circuit Breaker Diagram

Infiniti G20 1998 Fuse Box/Block Circuit Breaker Diagram

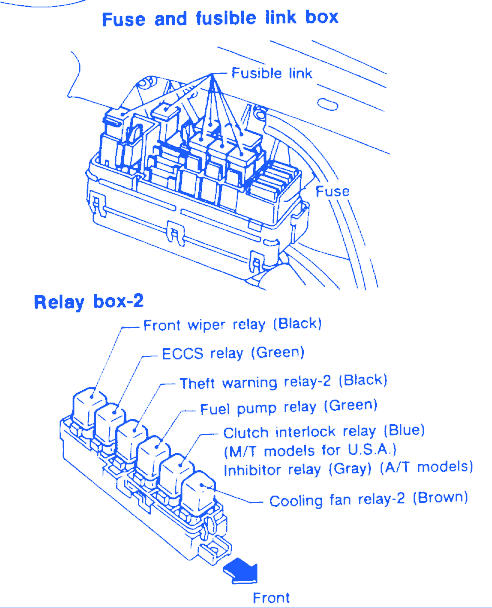

RELAY MAP
-Cooling Fan Relay-3
-Cooling Fan Relay-1 (A/T-Brown, M/T-Blue)
-ASCD Hold Relay (Blue)
-Front Fog Lamp Relay (Blue)
-Air Conditioner (Blue)
-Daytime Light Cancel Relay (Blue)
-Door Mirror Defogger Relay (Blue)
-Theft Warning Relay-1 (Brown)
-Horn Relay (Gray)

Infiniti G20 1998 Fuse Panel/Board – Fuse Symbol Map
