Isuzu Rodeo V6 2008 Main Engine Fuse Box/Block Circuit Breaker Diagram

Isuzu Rodeo V6 2008 Main Engine Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapAmps
Relays
1Fuse/Relay Box
2Diode
3Diode
4Tail Relay
5Not Used
6ACC Socket Relay
7Power Window Relay
8Not Used
9Rear Defogger Relay
Fuses
10Fuse ACC Socket20A
11Audio (ACC)15A
12Starter10A
13Tail15A
14Room Lamp10A
15Stop Lamp15A
16Door Lock20A
17Mirror Defogger10A
18Rear Defogger15A
19Rear Defogger15A
20Meter15A
21ENG15A
22IG Coil15A
23Back-Up15A
24ELEC IG15A
25RR WIPER10A
26FRT Wiper20A
27Audio10A
28Cigar Lighter15A
29Anti-Theft10A
30SRS10A
31Not Used-
32Circuit Breaker Power Window30A
33Spare Fuse20A
34Spare Fuse15A
35Spare Fuse10A

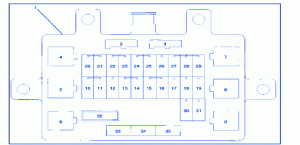

Isuzu Rodeo V6 2008 Main Engine Fuse Panel/Board – Fuse Symbol Map
