Jeep Patriot 1994 Switch Electrical Circuit Wiring Diagram

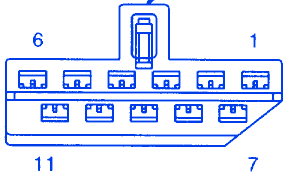

| CAV | CIRCUIT | FUNCTION |
|---|---|---|
| 1 | L60 20TN | Right Turn Signal |
| 2 | - | - |
| 3 | L62 20BR/RD | Right Turn Signal |
| 4 | L55 20RD/WT | Combination Flasher Input |
| 5 | L6 20RD/WT | Flasher Output |
| 6 | L12 20VT/TN | Hazard Flasher Select Signal |
| 7 | - | - |
| 8 | - | - |
| 9 | L63 20DG/RD | Left Turn Signal |
| 10 | L61 20LG/WT | Left Turn Signal |
| 11 | L55 20RD/WT | Combination Flasher Input |
Jeep Patriot 1994 Switch Electrical Circuit Symbol Map
