Jeep Sahara 1994 Power Distribution Center Fuse Box/Block Circuit Breaker Diagram

Jeep Sahara 1994 Power Distribution Center Fuse Box/Block Circuit Breaker Diagram



FUSEFUSED CIRCUITAMPS
1A14 16RD/WT30A
2A11 10RD50A
3A6 12RD/BK50A
4A1 12RD40A
5L9 188K/WT20A
6A11 10RD50A
7A3 12RD/BR40A
8A4 188K/RD20A
9A10 12RD/BR40A
10A20 14RD/DB30A
11F31 18VT10A
12M1 18PK10A
13F15 18YL/DG2A

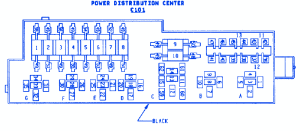

Jeep Sahara 1994 Power Distribution Center Fuse Panel/Board – Fuse Symbol Map
