Jeep Wrangler 2007 Center Gas Fuse Box/Block Circuit Breaker Diagram
| RELAY MAP | |
|---|---|
| - | WIPER HIGH/LOW RELAY |
| - | WIPER ON/OFF RELAY |
| - | STARTER MOTOR RELAY |
| - | FUEL PUMP RELAY |
| - | HIGH SPEED RADIATOR FAN RELAY |
| - | BLOWER MOTOR RELAY |
| - | CLUTCH SWITCH OVER RIDE RELAY (M/T) , TRANSMISSION CONTROL RELAY (A/T) |
| - | A/C COMPRESSOR CLUTCH RELAY |
| - | LOW SPEED RADIATOR FAN RELAY |
| - | AUTO SHUT DOWN RELAY |

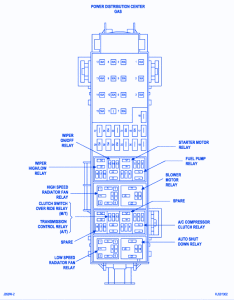

Jeep Wrangler 2007 Center Gas Fuse Panel/Board – Fuse Symbol Map
