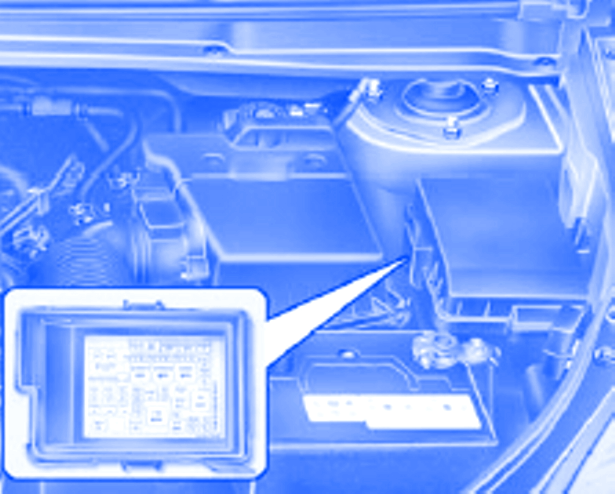

Kia Forte 2010 Engine Compartment Fuse Box/Block Circuit Breaker Diagram

Kia Forte 2010 Engine Compartment Fuse Box/Block Circuit Breaker Diagram



DescriptionFuse RatingProtected Component
I/P B+240AI/P Junction Box
HORN RELAY-Horn Relay
H/LP LOW RELAY-Head Lamp (Low) Relay
H/LP HIGH RELAY-Head Lamp (High) Relay
ABS240AABS/ESC Control Module
DRL15ADRL Control Module
HORN15AHorn Relay, Burglar Horn Relay
H/LP LOW15AHeadlamp Relay (Low)
F/PUMP20AFuel Pump Relay
H/LP HI15AHead lamp Relay (High)
ECU10ATCM, Generator, ECM
ALTENATOR125A(2.4L) Generator
150A(2.7L) Generator
RAD FAN HI RELAY-Radiator Fan (High) Relay
RAD FAN LOW RELAY-Radiator Fan (Low) Relay
F/PUMP RELAY-Fuel Pump Relay
ABS140AABS/ESC Control Module
SPARE15ASpare Fuse
MAIN30AEngine Control Relay
SPARE15ASpare Fuse
SPARE20ASpare Fuse
P/AMP25AAmplifier
SPARE15ASpare Fuse
S/ROOF20ASunroof Control Module
SPARE20ASpare Fuse
RAD FAN40ARadiator Fan Relay
PCU10APulse Generator, ECM, Radiator Fan Relay, Stop Lamp Switch
ABS10AABS/ESC Control Module, Multi purpose Check Connector
S/WARMER20ASeat Warmer Relay
ATM20AATM Control Relay
TAIL20ATail Lamp Relay
SPARE20ASpare Fuse
BACK UP10AVehicle Speed Sensor, Back up Lamp Switch, Transaxle Range Switch
WIPER RELAY-Wiper Relay
MAIN RELAY-Main Relay
RR HTD40ARear Defogger Relay
IGN 140AIgnition Switch (ACC, IG1)
I/P B+130AI/P Junction Box
ACC SOCKET20ARear Power Outlet
A/CON10AA/C Relay
START RELAY-Start Relay
ECU 120AECM
IGN COIL20AIgnition Coil
SNSR 315AA/C Relay, Injector, Lambda Sensor, Radiator Fan Relay, Stop Switch (Brake Test Line)
BLOWER40ABlower Relay
ATM CONT RELAY-ATM Control Relay
IGN 230AIgnition Switch (IG2, START), Start Relay
A/CON RELAY-A/C Relay
SNSR 215AFuel Fump Relay, Oxygen Sensor
SNSR 115AImmobilizer Control module, Camshaft Position Sensor, Mass Air Flow Sensor, Oil Control Valve, Canister Purge Solenoid Valve

Kia Forte 2010 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
